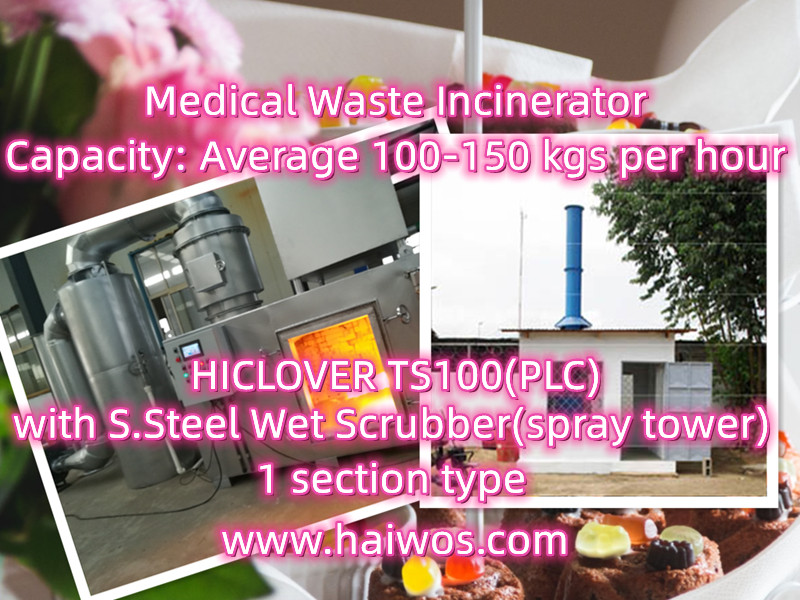

100 Kg/Hr Bio-Medical Waste Incinerator, wet scrubber/spary tower optional. 2 combustion chambers, italy burner, APO function,
PLC auto control system incinerator
Incinerator Items/ModelHICLOVER TS100(PLC) Burn Rate (Average)100-150 kg/hour Feed Capacity(Average)200kg/feeding Control ModePLC Automatic Primary Combustion Chamber1200Liters(1.2m3) Internal Dimensions120x100x100cm Secondary Chamber600L Smoke Filter ChamberYes Feed ModeManual Voltage220V Power0.7Kw Burner TypeItaly Brand Oil Consumption (kg/hour)16 N.Gas Consumption (m3n/hour)*** Temperature MonitorYes Temperature ThermometerCorundum Probe Tube, 1400℃Rate. Temperature ProtectionYes Automatic CoolingYes Automatic False Alarm Yes Automatic Protection Operator(APO)Yes System Testing ModelYes Time SettingYes Progress Display BarLCD Display Oil Tank200L Oil Tank StandYes Liquid level Display Yes Feeding Door70x70cm Chimney8Meter Chimney TypeStainless Steel 304 1st. Chamber Temperature800℃–1000℃ 2nd. Chamber Temperature1000℃-1300℃ Residency Time2.0 Sec. Gross Weight6000kg External Dimensions260x150x180cm 1st. Chamber Composition Hot FaceThickness: ≥115 mm 55% of Al203 1750°C Grade 2nd. Chamber Composition Hot FaceThickness: ≥115 mm 75% of Al203 1790°C Grade Chamber Cold Face MaterialHigh Rate Refractory Ceramic Fiber Other Parts Hot Face RefractoryHeavy Duty with steel fiber Burner operationAutomatic On/Off Dry ScrubberIncluding Wet ScrubberOptional Top Loading DoorOptional Paint for outside face250°C Grade Sealing MaterialRefractory Ceramic Fiber Upgrade Containerized Mobile TypeOptional CE CertificateCE(2006/42/EC,2014/30/EU ISO Certificate ISO9001:2015 High-tech Enterprise Certificate Yes
100 Kg/Hr Bio-Medical Waste Incinerator for kenya
PLC auto control system incinerator
Incinerator Items/ModelHICLOVER TS100(PLC) Burn Rate (Average)100-150 kg/hour Feed Capacity(Average)200kg/feeding Control ModePLC Automatic Primary Combustion Chamber1200Liters(1.2m3) Internal Dimensions120x100x100cm Secondary Chamber600L Smoke Filter ChamberYes Feed ModeManual Voltage220V Power0.7Kw Burner TypeItaly Brand Oil Consumption (kg/hour)16 N.Gas Consumption (m3n/hour)*** Temperature MonitorYes Temperature ThermometerCorundum Probe Tube, 1400℃Rate. Temperature ProtectionYes Automatic CoolingYes Automatic False Alarm Yes Automatic Protection Operator(APO)Yes System Testing ModelYes Time SettingYes Progress Display BarLCD Display Oil Tank200L Oil Tank StandYes Liquid level Display Yes Feeding Door70x70cm Chimney8Meter Chimney TypeStainless Steel 304 1st. Chamber Temperature800℃–1000℃ 2nd. Chamber Temperature1000℃-1300℃ Residency Time2.0 Sec. Gross Weight6000kg External Dimensions260x150x180cm 1st. Chamber Composition Hot FaceThickness: ≥115 mm 55% of Al203 1750°C Grade 2nd. Chamber Composition Hot FaceThickness: ≥115 mm 75% of Al203 1790°C Grade Chamber Cold Face MaterialHigh Rate Refractory Ceramic Fiber Other Parts Hot Face RefractoryHeavy Duty with steel fiber Burner operationAutomatic On/Off Dry ScrubberIncluding Wet ScrubberOptional Top Loading DoorOptional Paint for outside face250°C Grade Sealing MaterialRefractory Ceramic Fiber Upgrade Containerized Mobile TypeOptional CE CertificateCE(2006/42/EC,2014/30/EU ISO Certificate ISO9001:2015 High-tech Enterprise Certificate Yes
100 Kg/Hr Bio-Medical Waste Incinerator for kenya
